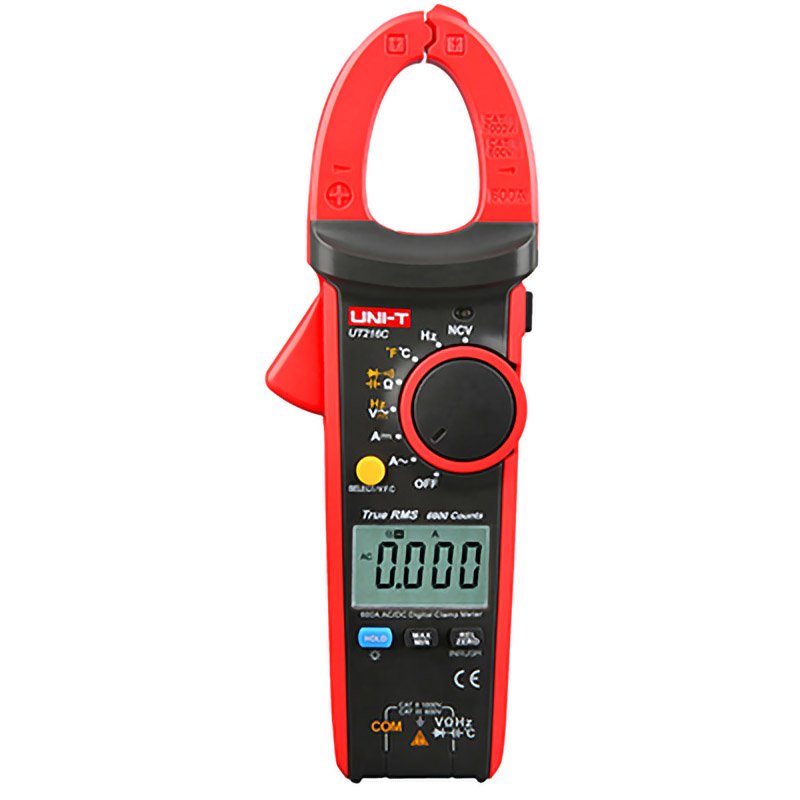

UNI-T AC - DC 600A True RMS Clamp Meter

DC current : 60A / 600A ± (2.5% + 5)
AC current : 60A / 600A ± (2.5% + 5)
DC voltage : 600 mV / 6 V / 60 V / 600 V / 1000 V ± (0.8% + 1)
AC Voltage : 6V/60V/600V/750V ± (1.2% + 5)
Resistance : 600 ohms / 6 ohm / 60 ohm / 600 ohm / 6 MOhm / 60 MOhm ± (1% + 2)
Capacitance : 60 nF / 600 nF / 6 uF / 60 uF / 600 uF / 6 mF / 60 mF ± (4% + 5)
Frequency : 10 Hz-1 MHz ± (0.1% + 4)
Temperature : -40 °C - 1000 °C ± (2.5% + 3) / -40 °F - 1832 °F ± (2.5% + 4)

Maximum reading : 6000
Automatic test change ranges
Jaw opening : 30 mm
True RMS
Diode : about 3 V
VFC - AC measurement for changing frequency
NCV - detection of the electric field
Freeze the last screen
Device reset function
Related function
Maximum / minimum
Surge current
Backlit LCD
Analog bar graph : 61 segments
Illumination measurement point
Automatic switch-off : after approximately 15 minutes
Continuation of the circuit
Low battery indication : = <3.6 V
Circuit input protection
Input voltage resistance : >= 10 MOhm

Power supply : 1.5 V 3x AAA
Screen size : 38 x 24 mm
Product dimensions : 220 × 75 x 40 mm
Product weight : 231.7 g
