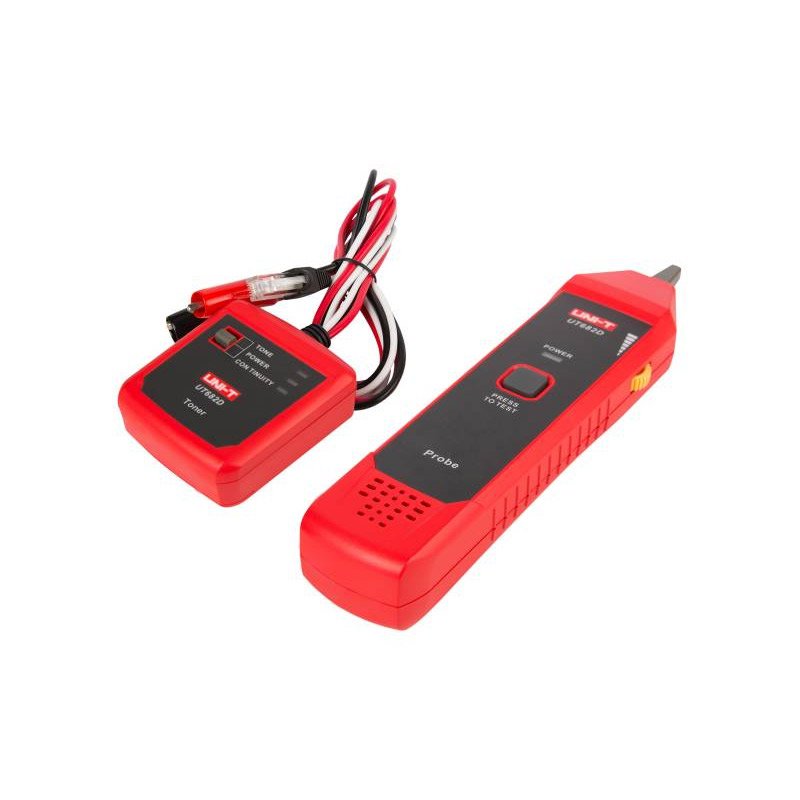

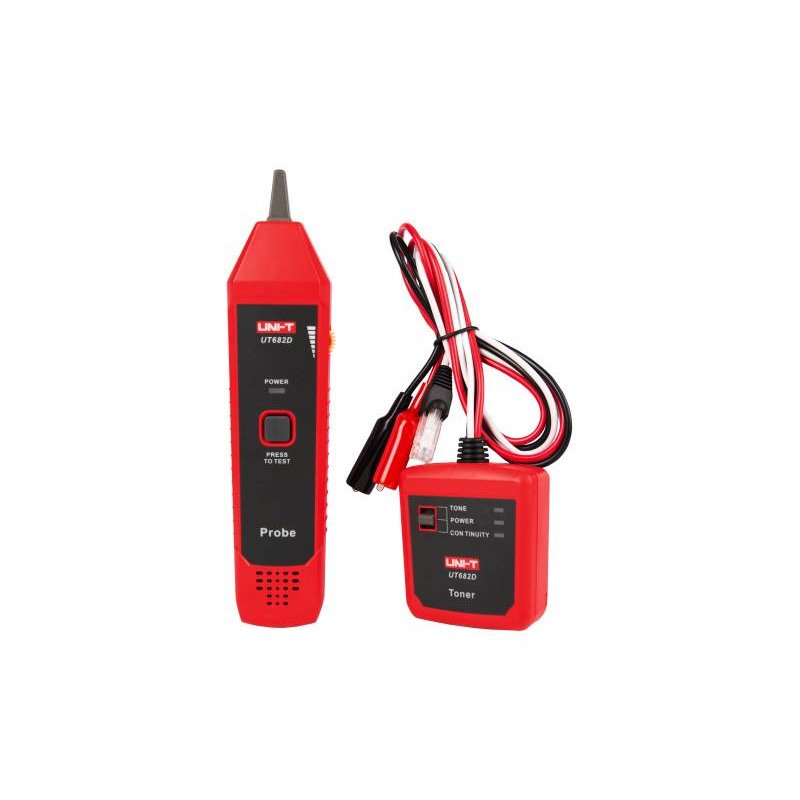

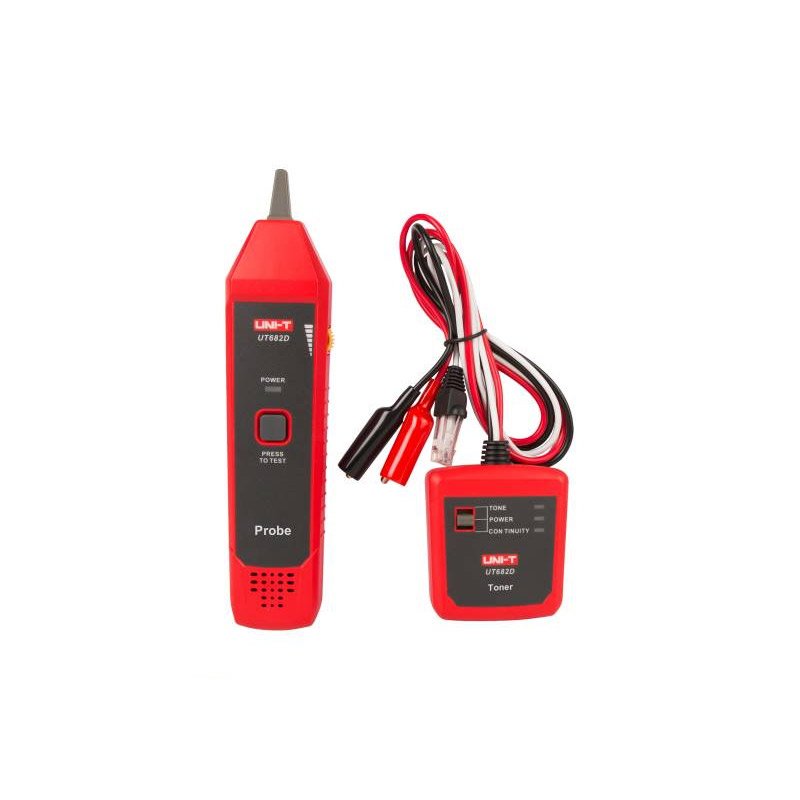

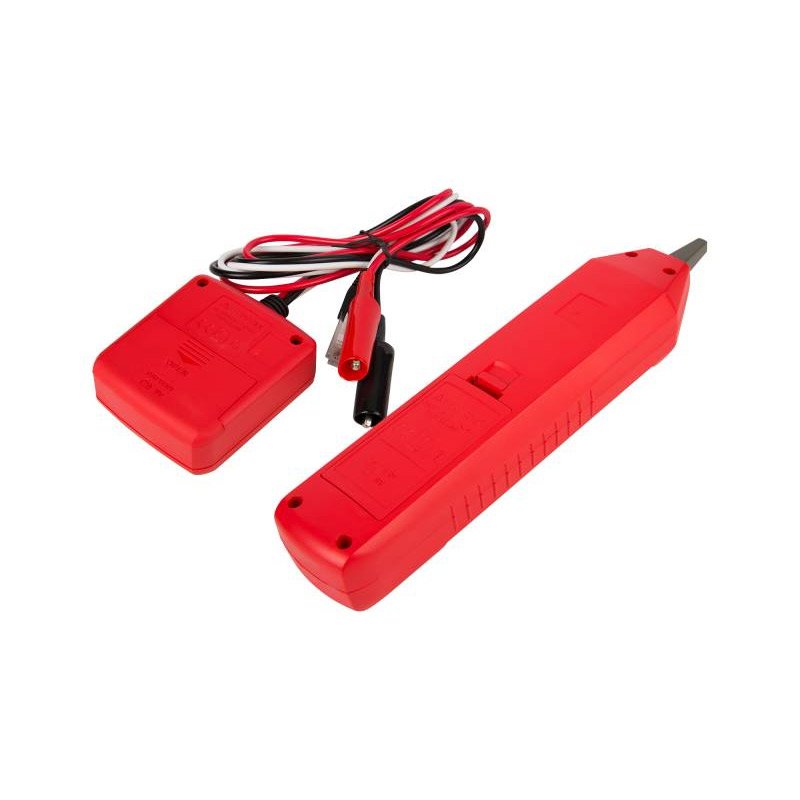

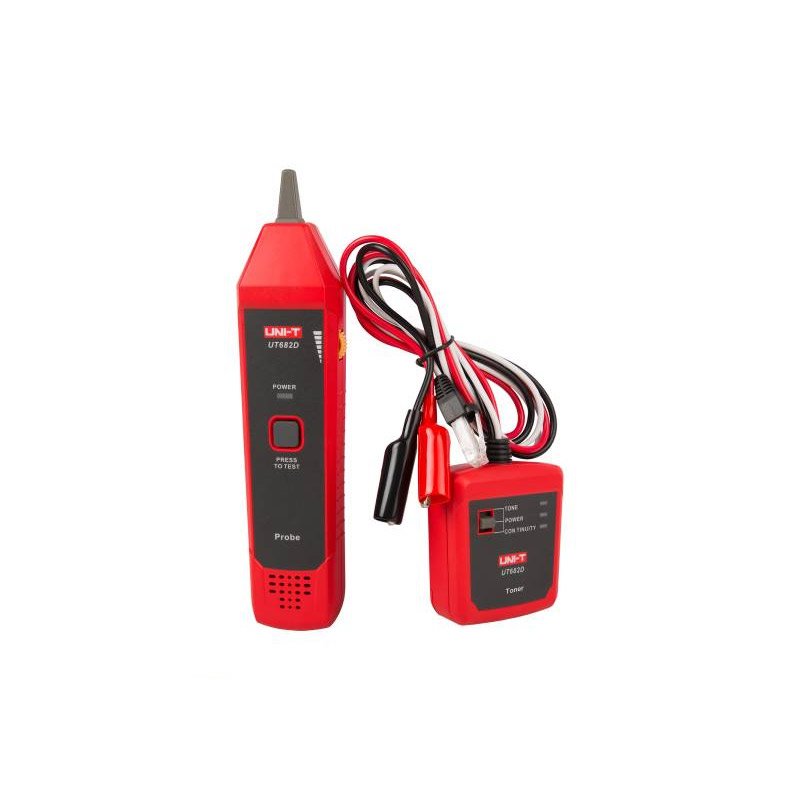

Uni-T Cable Detector

MAIN PARAMETERS

Cable type: electrical / telephone / twisted pair
The maximum length of the telephone line : 3000 m
Telephone cable polarity indication: for ± (5V ~ 52V)
Transmitter continuous output voltage: 8 V DC
Power supply: transmitter - 9 V battery. receiver - 9 V battery
Maximum current consumption of the receiver in standby mode: ~ 10 mA
Maximum current consumption of the receiver during operation: <40 mA

GENERAL FEATURES
Product dimensions: transmitter - 74 x 68 x 28 mm. receiver: 208 x 47 x 33 mm
Weight: transmitter - 150 g. receiver - 130 g
Accessories: batteries
