ATC-50A Web Amplifier

MODEL : ATC-50A

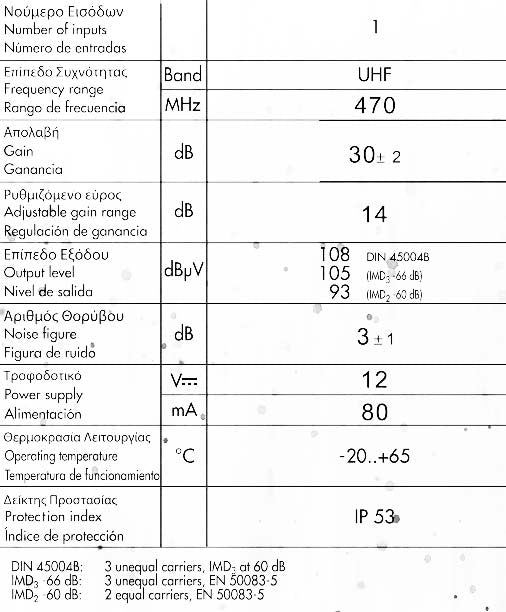

Number of inputs : 1
Frequency range : UHF, 470 MHz
Gain : 30+ 2 dB
Adjustable gain range : 14dB
Output level : 108 (DIN 45004B), 105 (IMD3-66 dB), 93 (IMD2-60 dB)
Noise figure : 3±1 dB
Power supply : 12V, 80mA
Operating temperature : -20..+65 °C
Protection index : IP 53 (suitable for outdoor use)
