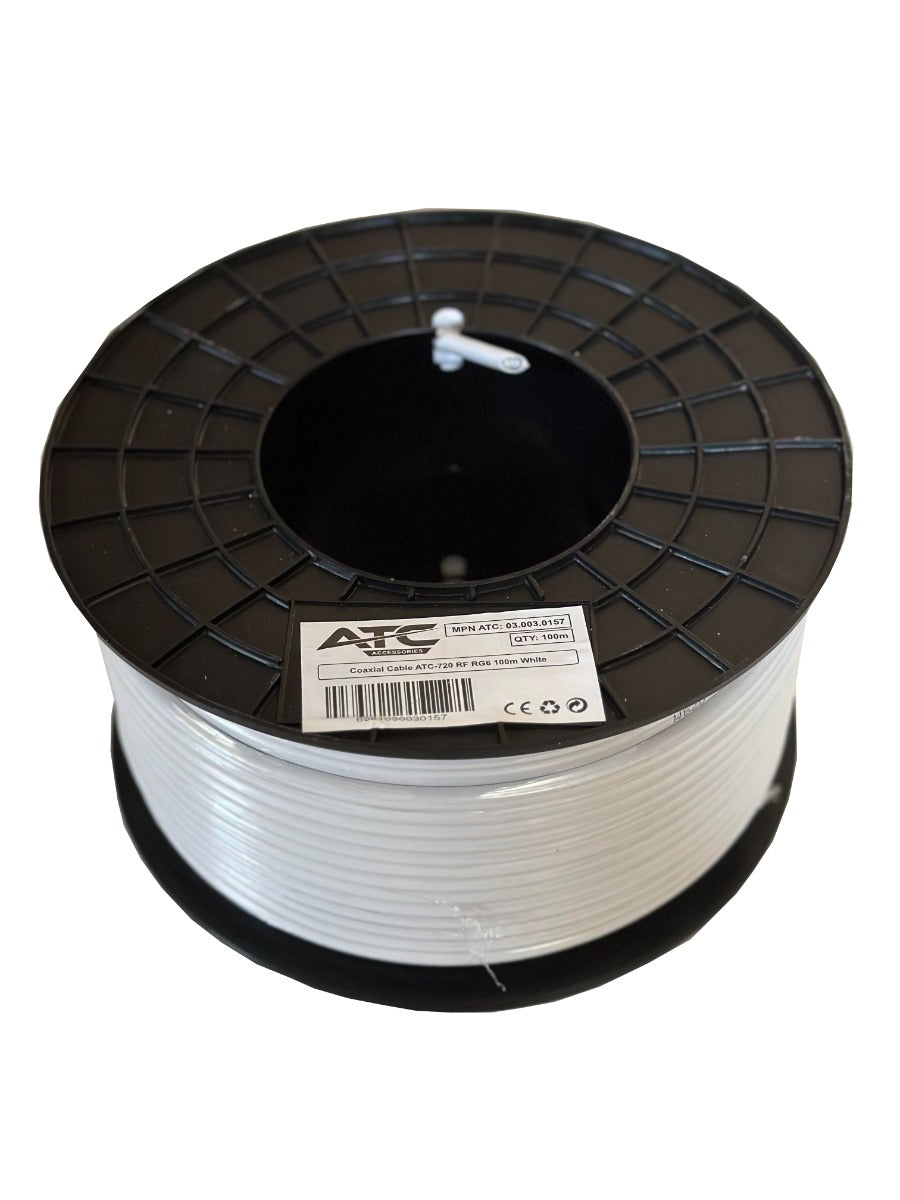

ATC RF Swivel ATC-720 RG6 100m White

RG-6 Cable Technical Details

Type : RG-6
Inner Conductor : Tinned Copper (CCS), ø 1.13 mm
Dielectric : 4.8 ± 0.02 mm PE naturally foamed with nitrogen (N)
First Insulation : Al/PET foil, thickness 0.04 mm
Knitting : 80 wires x 0.12 mm, AL wire
Second Insulation : Al/PET foil, thickness 0.04 mm
PVC Outer Diameter : 6.8 mm, White
Characteristic Resistance : 75 ± 3 Ohm
Application : Indoor Installation
Packaging : 4x100m

Attenuation/100m :

• 50 MHz : 4.6 dB
• 200 MHz : 8.5 dB
• 300 MHz : 10.5 dB
• 470 MHz : 13.0 dB
• 862 MHz : 18.0 dB
• 1000 MHz : 19.5 dB
• 1750 MHz : 26.0 dB
• 2150 MHz : 29.8 dB
