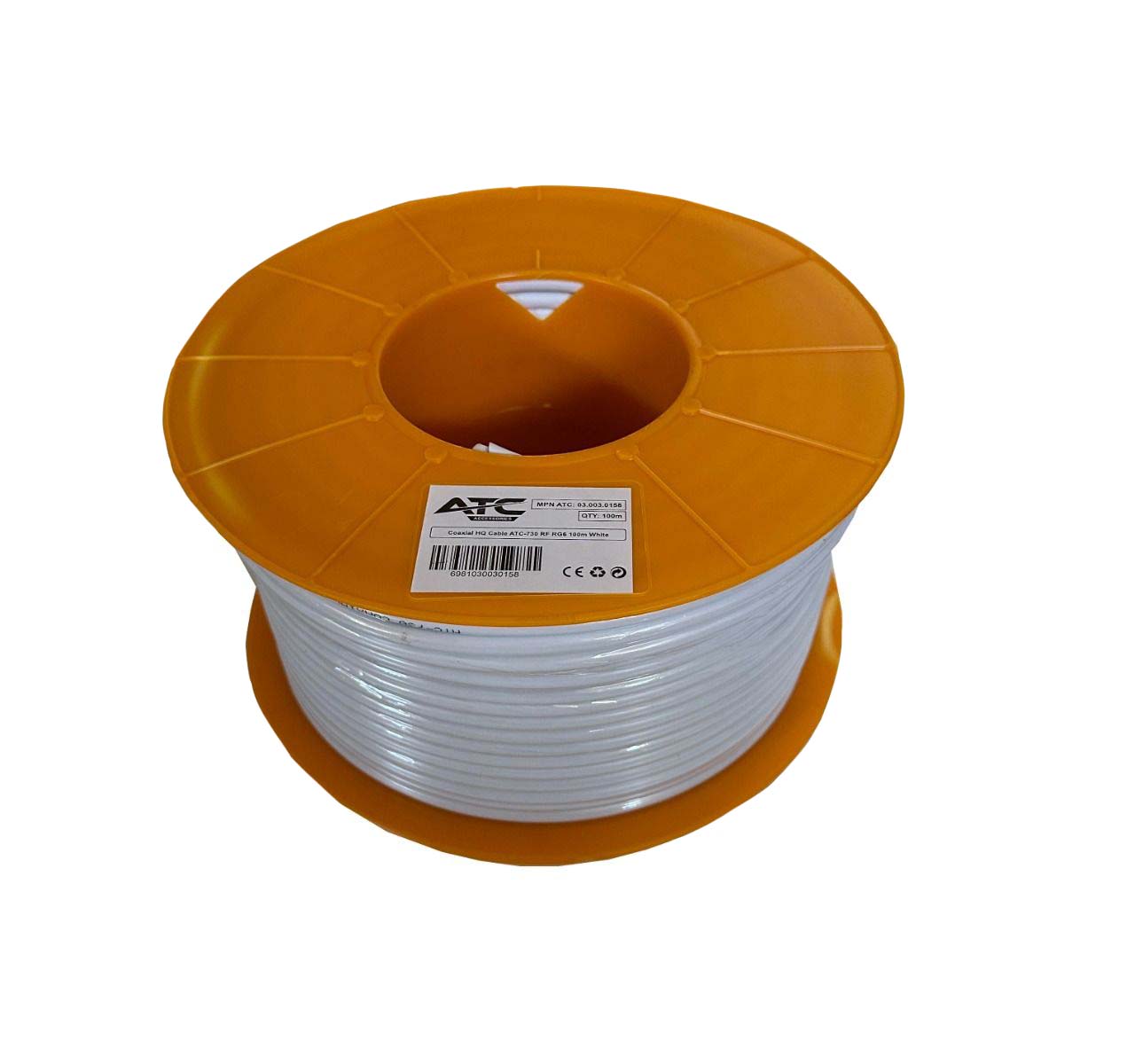

ATC RF Swivel ATC-730 HQ RG6 100m White

RG-6 Cable Technical Details

Type : RG-6
Inner Conductor : Tinned Copper (CCS), ø 1.13 mm
Dielectric : 4.8 ± 0.02 mm PE naturally foamed with nitrogen (N)
First Insulation : Al/PET foil, thickness 0.04 mm
Knitting : 112 wires x 0.12 mm, AL wire
Second Insulation : Al/PET foil, thickness 0.04 mm
PVC Outer Diameter : 6.9 mm, White
Characteristic Resistance : 75 ± 3 Ohm
Application : Indoor and Outdoor Installation
Packaging : 4x100 m

Attenuation/100 m :

• 50 MHz : 5.5 dB

• 200 MHz : 9.5 dB

• 300 MHz : 11.0 dB

• 470 MHz : 14.0 dB

• 862 MHz : 19.0 dB

• 1000 MHz : 21.0 dB

• 1750 MHz : 27.5 dB

• 2150 MHz : 30.0 dB
