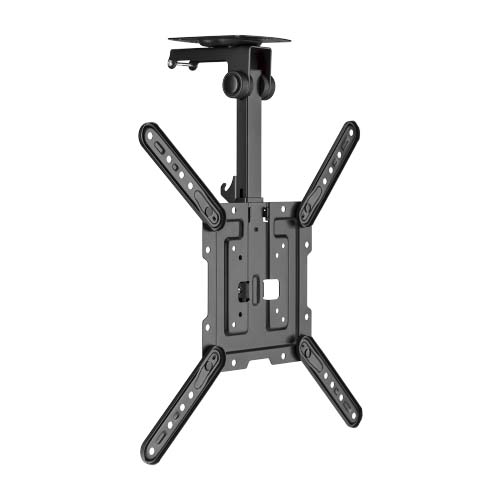

Brateck LCD Ceiling TV Mount CM344 23''- 55''

SPECIFICATIONS

Product Category : TV Ceiling Mount
Class : Normal
Material : Steel
Sheet metal thickness :

• VESA panel THK=1.5mm cold rolled sheet
• Wall plate THK=2mm cold rolled sheet
• VESA Panel THK=0.059" cold rolled sheet
• Wall plate THK=0.079" cold rolled sheet

Tube size : 30x20x1.5 mm square steel tube (1.2"x0.79"x0.059" square steel tube)
Surface finish : Powder coating
Color : Black with fine texture

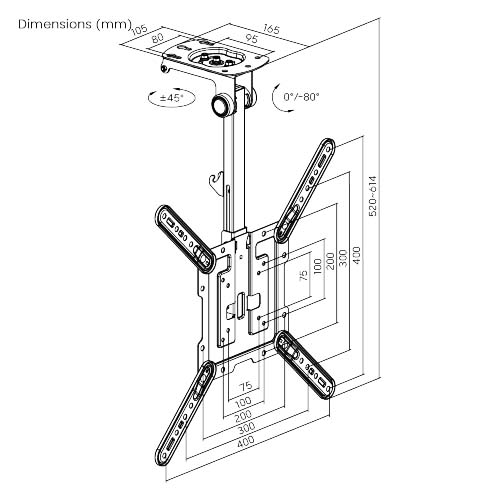

Dimensions : 614x435x165mm (24.2"x17.1"x6.5")
Screen size adjustment : 23"-55"
Fits curved TVs : Yes

Mounting Hole Pattern : VESA Only
VESA compatible :

• 75x75
• 100x100
• 100x200
• 200x100
• 200x200
• 200x300
• 300x200
• 200x400
• 400x200
• 300x300
• 300x400
• 400x300
• 400x400

Maximum Mounting Hole : 400x400

Weight Capacity : 20kg (44lbs)
Tested Strength : Approved 3 times

Profile : 83mm (3.3")

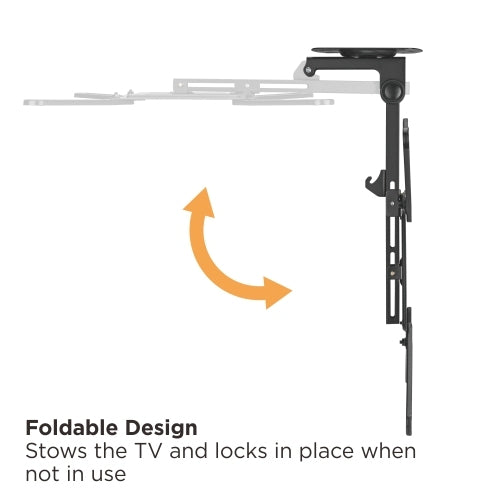

Tilt Range : 0° / -80°

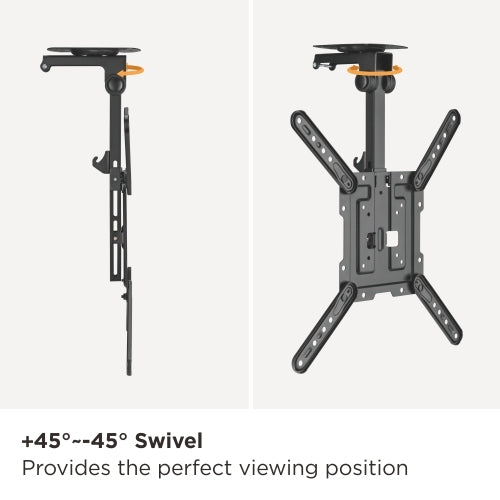

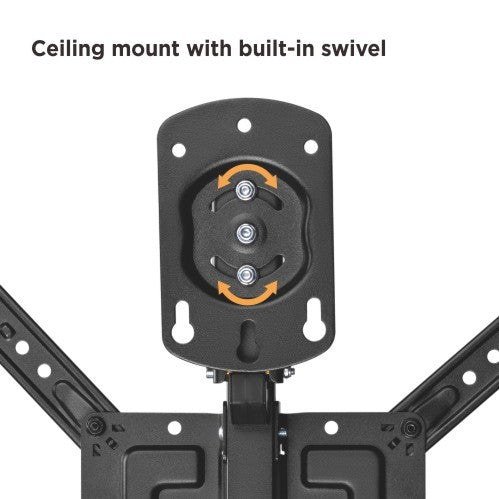

Rotation Range : +45° ~ -45°

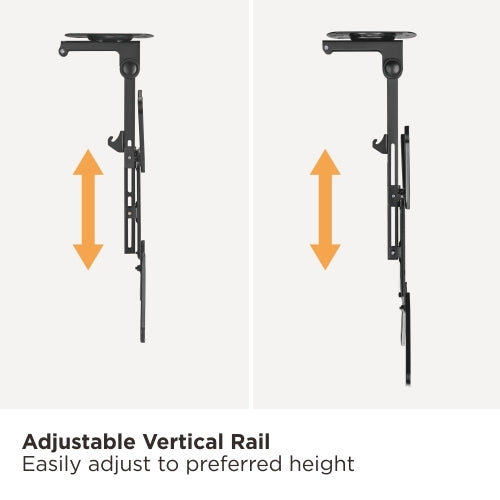

TV Height Range : min520 ~ max614mm (min20.5" ~ max24.2")

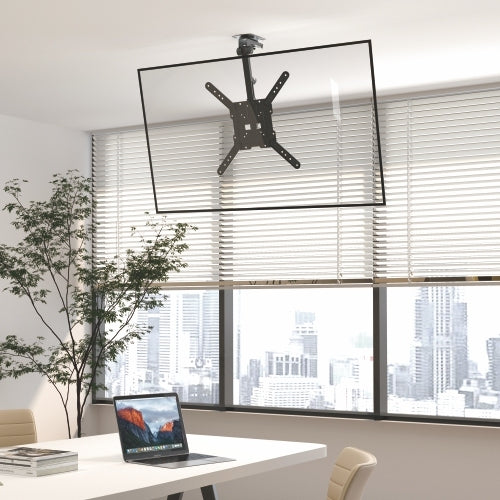

Installation : Ceiling mounted
Panel Type : Removable panel
Wall Plate Type : Fixed wall plate
Direction Indicator : Yes
Cable Management : No
Bubble Level : No

Accessory Package : Normal/Ziplock Polybag, Compartment Polybag
