Brateck TV Wall Mount LPA81-441

SPECIFICATIONS

Product Category : Full-motion TV Wall Mount
Class : Normal
Material : Steel, Plastic

Sheet metal thickness :

• VESA panel THK=1.8mm cold rolled sheet
• Wall plate THK=3mm pickled sheet
  (VESA Panel THK=0.071" cold rolled sheet, Wall Plate THK=0.12" desiccant sheet)

Tube size : 40x20x1.5mm (1.6"x0.79"x0.059")
Surface finish : Powder coating
Color : Black with fine texture

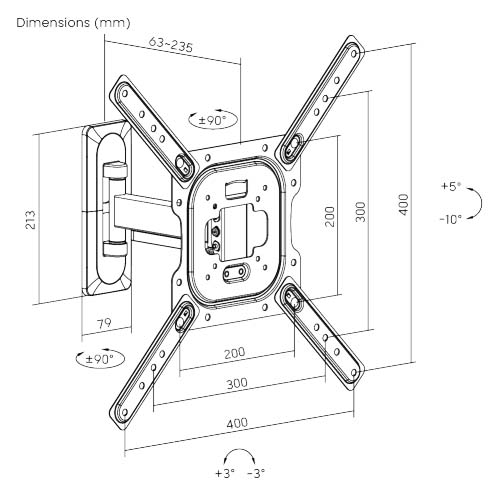

Dimensions : 235x445x445mm (9.3"x17.5"x17.5")

Screen size adjustment : 23" - 55"
Fits curved TVs : Yes
Mounting Hole Pattern : VESA Only

VESA compatible :
75x75, 100x100, 200x100, 200x200, 300x200, 400x200, 300x300, 400x300, 400x400
Maximum Mounting Hole : 400x400

Weight Capacity : 35kg (77lbs)
Tested Strength : Approved 4 times

Profile : 63~235mm (2.5"~9.3")

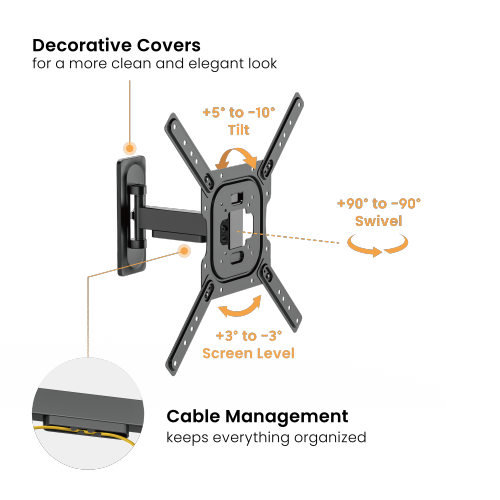

Tilt Range : +5° ~ -10°
Rotation Range : +90° ~ -90°
Screen Level : +3° ~ -3°
Free Screen Tilt : No

Installation : Solid wall, Single Bracket
Panel Type : Removable panel
Wall Plate Type : Fixed wall plate
Cable Management : Yes
Anti-Theft : No
Bubble Level : No

Accessory Package : Normal/Ziplock Polybag, Compartment Polybag
