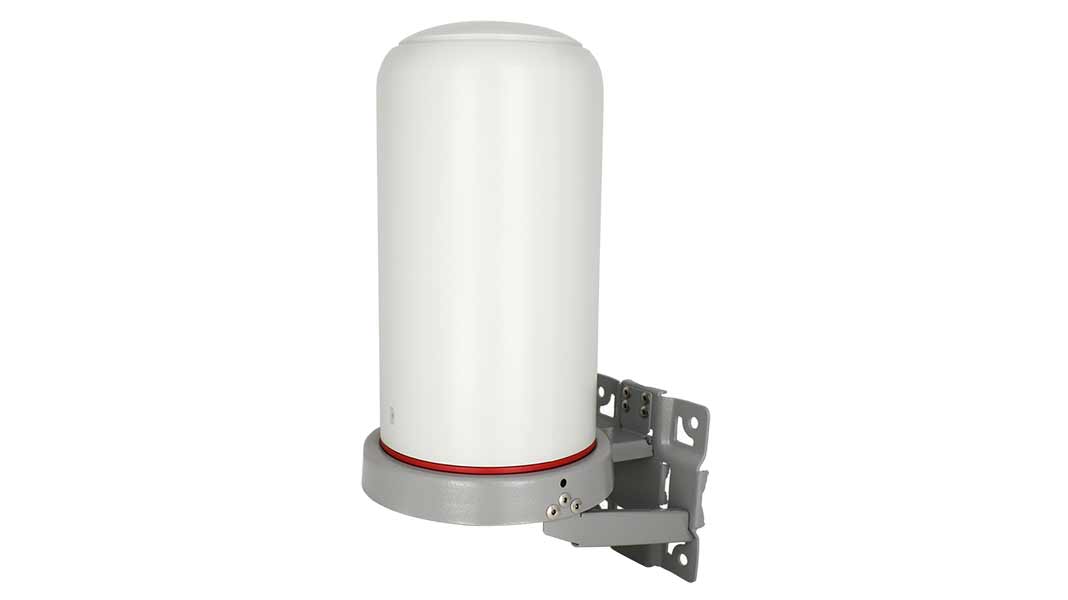

ODU External Router 4G LTE Cat16

Features

Device Type: 4G Router for outdoor use
Built-in Antenna: Omnidirectional (built-in antenna for receiving and transmitting 4G data)
Power supply: PoE 19V/1.26A
SIM Card: Supports micro-SIM (3FF) for data connection
Mounting Base: Includes mounting base for balcony or wall mounting for maximum performance
MIMO: 4x4 MIMO for improved performance
Supported Bands: 1, 3, 7, 20, 28, 38, 40, 41, 42, 43

Data Rate

TDD (Time Division Duplexing):

• Downlink: 700 Mbps
• Uplink: 30 Mbps

FDD (Frequency Division Duplexing):

• Downlink: 900 Mbps
• Uplink: 150 Mbps

Duplex (TDD and FDD)

• TDD: Uses the same spectrum for Uplink and Downlink in different time slots, with time divided into short time periods for each direction.
• FDD: Separates the Uplink and Downlink into different frequency pairs, allowing synchronized transmission without delays.

Antenna system

Antenna Gain:

• 7 dBi: In bands B1/B3/B7/B38/B40/B41/B42/B43
• 2 dBi: In bands B20/B28

Modulation:

• Uplink: 64 QAM
• Downlink: 256 QAM

Easy Installation: Simple placement based on the signal indicator to select the location with the strongest LTE signal.

Access to the Web Interface (WebUI):

To log in to the ODU LTE 4G WebUI, follow these steps:

1. Open a browser on a computer
2. Enter the following IP address:
   • IP address: 192.168.192.1
3. Enter the following information:
   • Username: user
   • Password: LTE@Endusr
