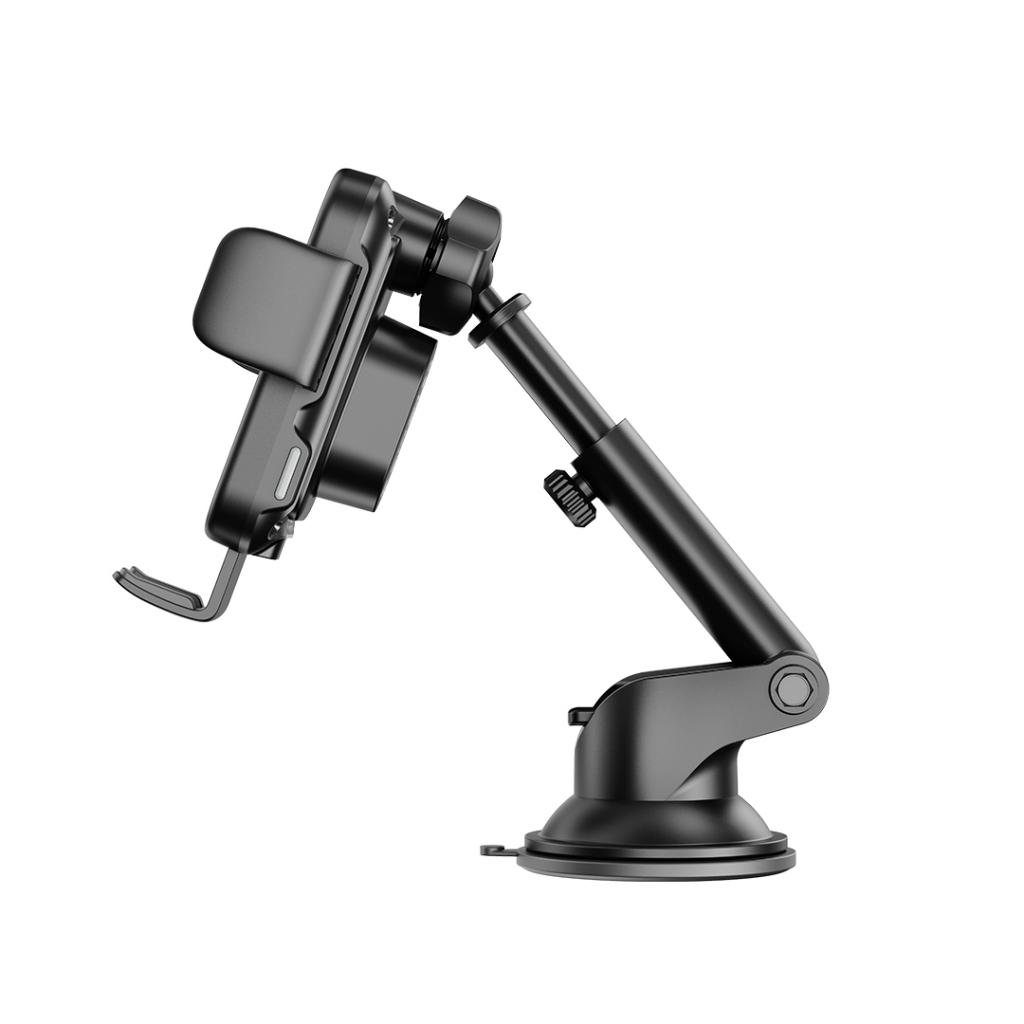

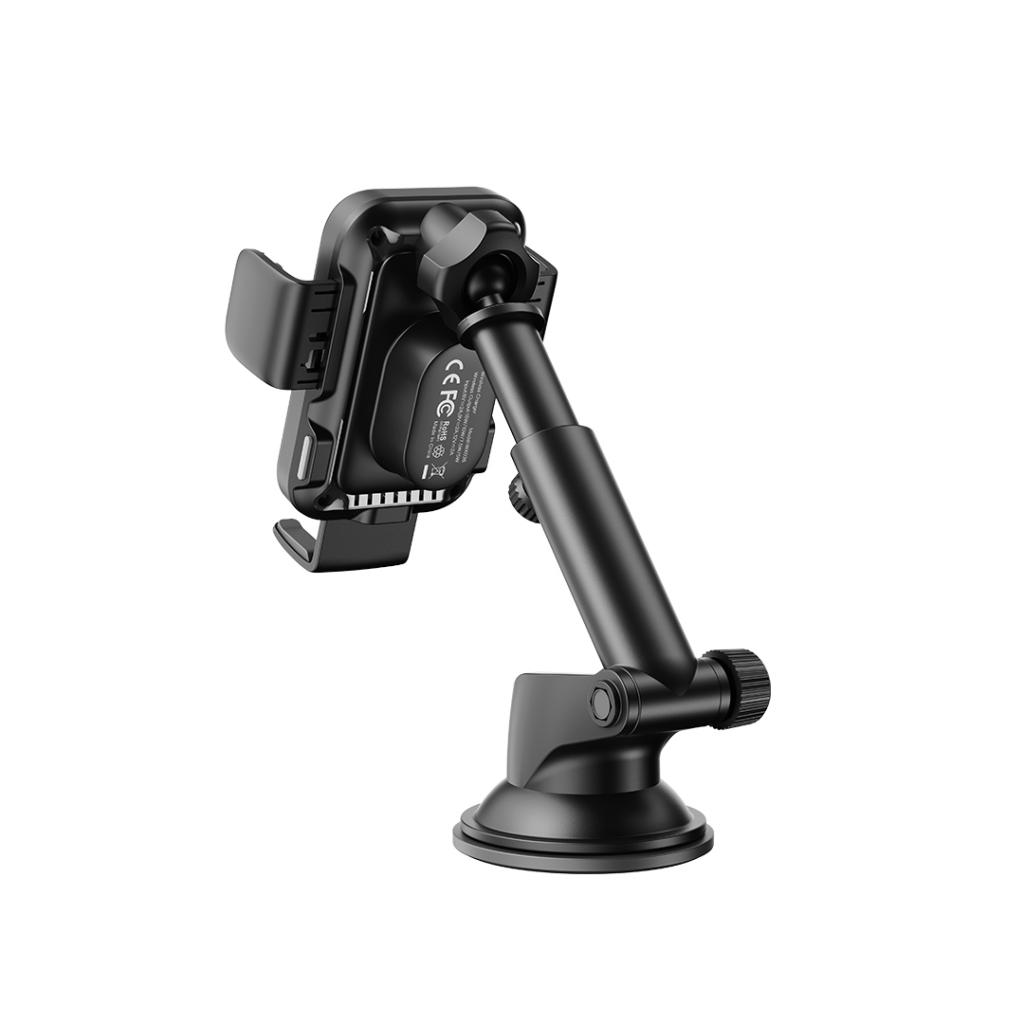

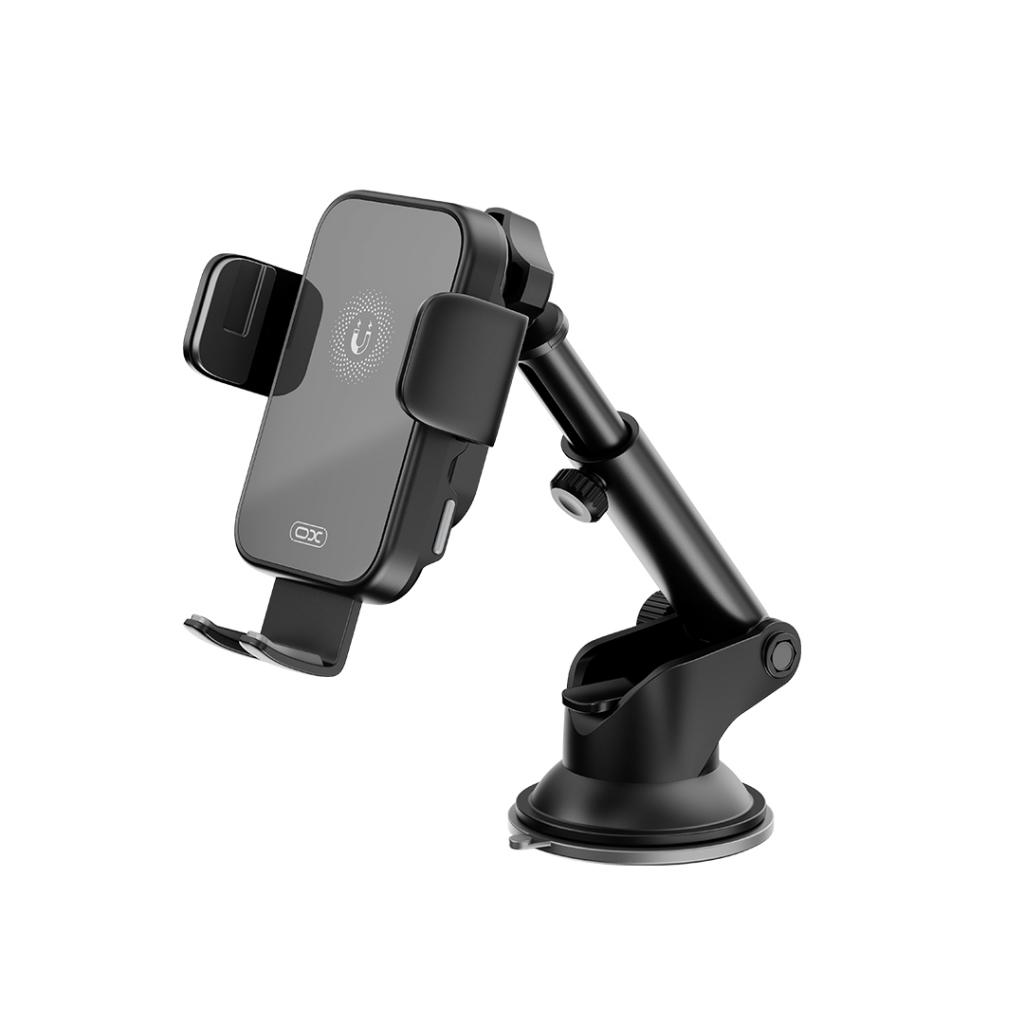

XO WX036 Car Mobile Holder with Automatic Arm and Wireless Charging

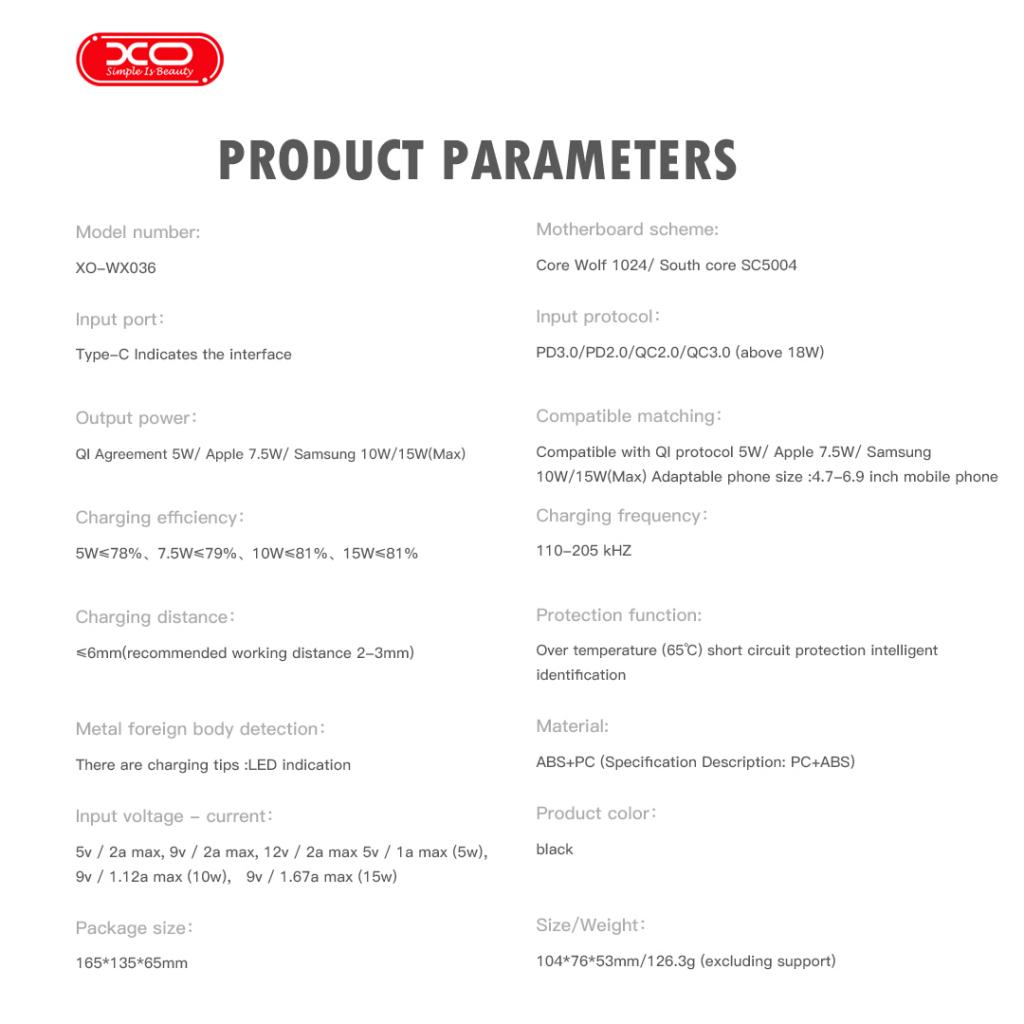

Mainboard : Core Wolf 1024/Southern Core SC5004
Input port : Type-C interface
Input voltage current : 5V/2A MAX, 9V/2A MAX, 12V/2A MAX
Wireless charging output : 5V/1A MAX (5W), 9V/1.12A MAX (10W), 9V/1.67A MAX (15W)
Input protocol : PD3.0/PD2.0/QC2.0/QC3.0 (over 18W)
Output Power : QI Protocol 5W/Apple 7.5W/Samsung 10W/15W (Max.)
Compatible Match : Compatible with QI protocol 5W/Apple 7.5W/Samsung 10W/15W (Max.)
Suitable phone size : 4.7-6.9 inch phone
Charging efficiency : 5W ≤ 73%, 7.5W ≤ 75%, 10W ≤ 78%, 15W ≤ 78%
Charging frequency : 110-205 kHz
Charging distance : ≤ 6mm (recommended working distance 2-3mm)
Protection functions : Over-temperature/over-voltage/over-current protection, short-circuit protection, intelligent identification
Metal foreign object detection : Charging prompt: LED indicator
Material : ABS+PC (specification description: PC+ABS)
Size/Weight :

• Size: 98.5*63*21.34mm
• Weight: 121g (sample does not have suction cup support)

Product color : Black
Working principle of the clamp arm : When activated, the clamp arm automatically opens, the phone is placed, the FOD automatically detects the phone, and the clamp arm automatically closes.
How to retrieve the phone while it is on : Press the mechanical button, the left and right clamping arms will automatically open, and remove the phone. Keep the clamping arm open.
Method for removing the phone in case of power failure : After turning off the car, press the mechanical button to remove the phone and open and close it twice within 5 minutes.
