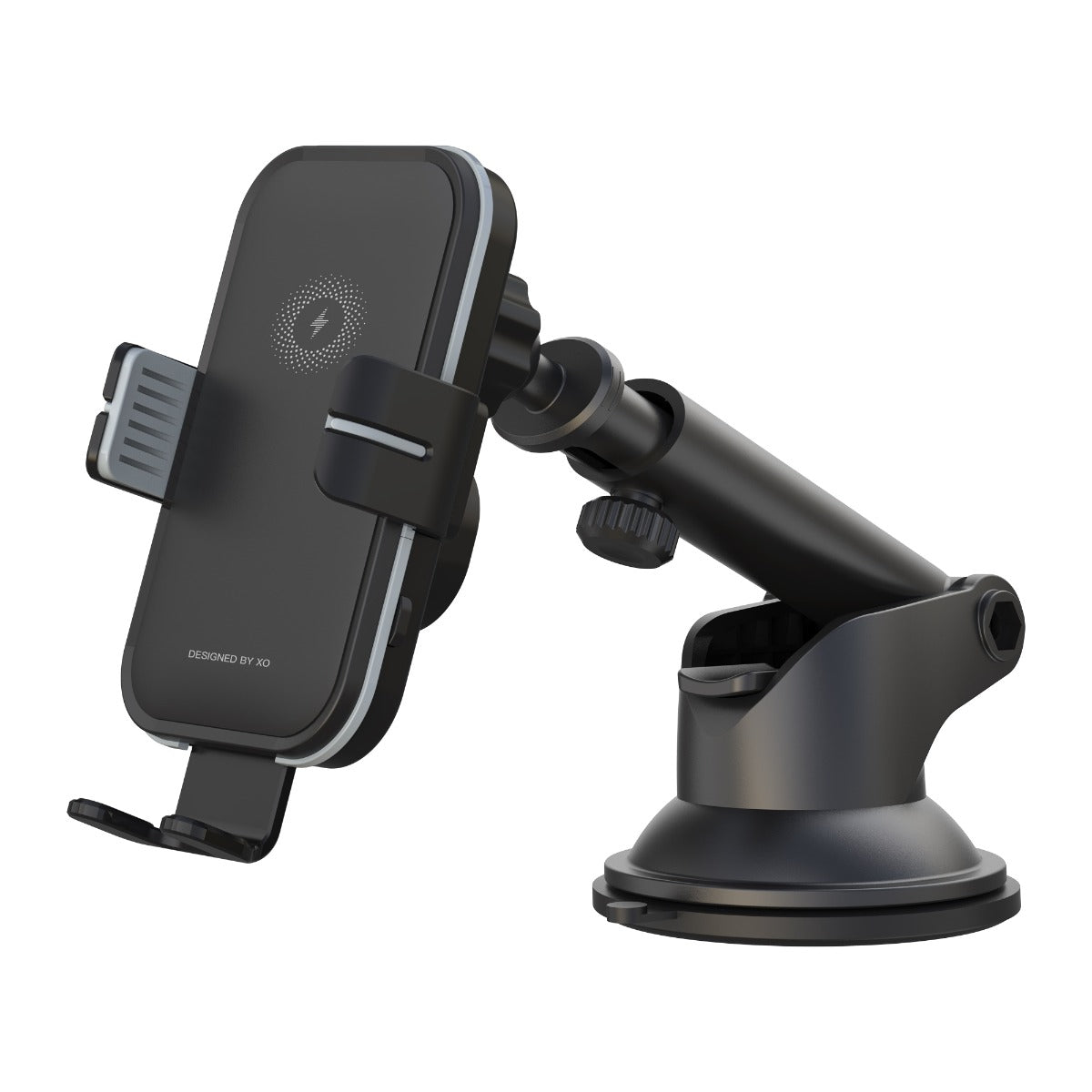

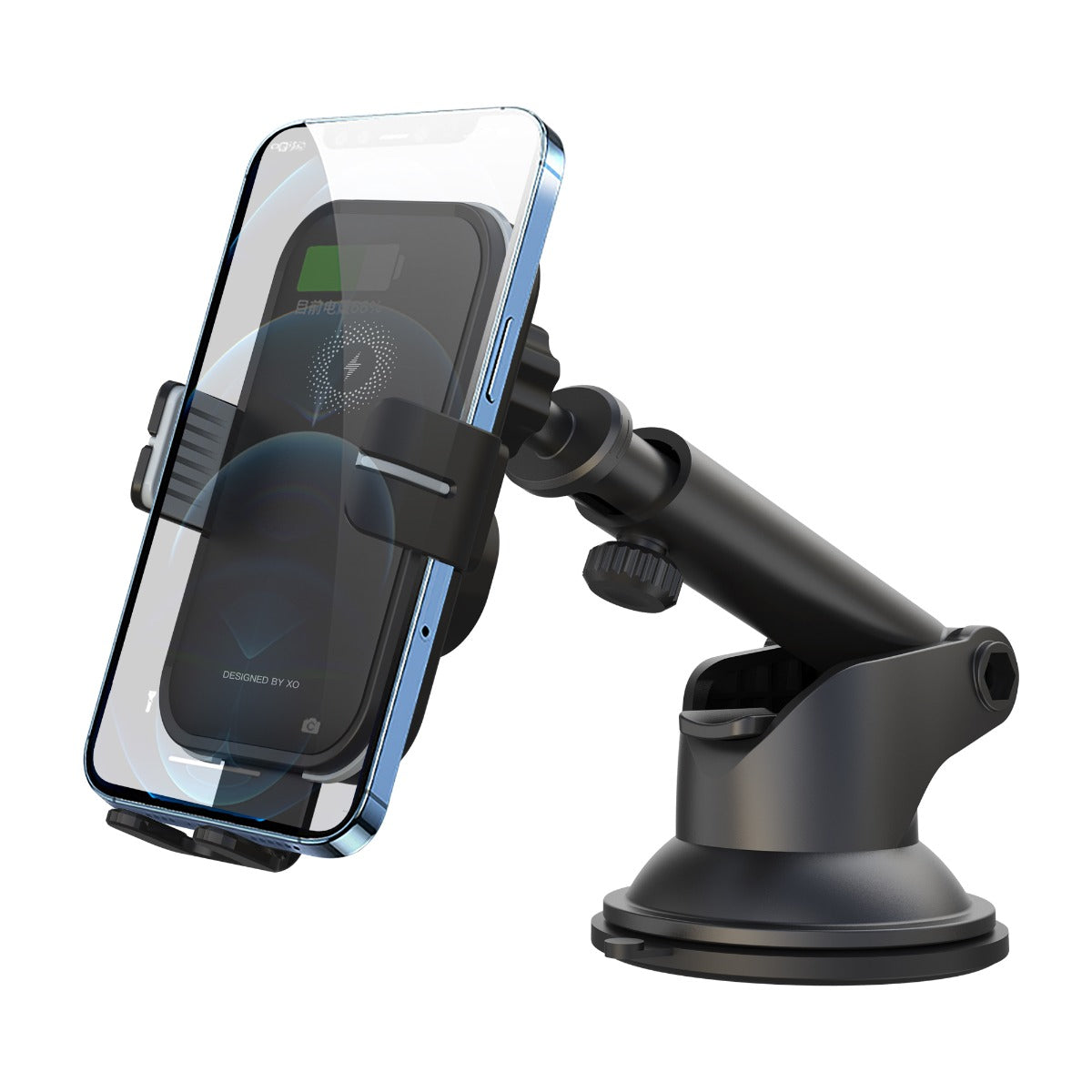

XO WX027 15W Car Mobile Phone Holder with Wireless Charging

Motherboard : China Resources Silicon CS4967/Nanjing Ruihe 1030
Input port : Type-C interface
Input voltage current : 5V/2A MAX, 9V/2A MAX, 12V/2A MAX corresponding to wireless charging output 5V/1A MAX (5W), 9V/1.12A MAX (10W), 9V/1.67A MAX (15W)
Input protocol : PD3.0/PD2.0/QC2.0/QC3.0 (over 18W)
Output Power : QI Protocol 5W/Apple 7.5W/Samsung 10W/15W (Max.)
Compatible Match : Compatible with QI protocol 5W/Apple 7.5W/Samsung 10W/15W (Max.)
Suitable phone size : 4.7-6.9 inch phone
Charging efficiency : 5W ≤ 73%, 7.5W ≤ 75%, 10W ≤ 78%, 15W ≤ 82%
Charging frequency : 110-205 kHz
Charging distance : ≤ 6mm (recommended working distance 2-3mm)
Protection functions : Temperature/overvoltage/overcurrent protection, short circuit protection, intelligent identification
Foreign metal object detection : Yes
Charging indicator : LED indicator
Material : ABS+PC+fiberglass
Size: 108*64.5*20mm
Weight (including suction cup base): 214g
Working principle of the clamp arm :

When activated: The clamp arm automatically opens, the mobile phone is placed, the FOD detection automatically detects the phone, and the clamp arm automatically closes.

There are two ways to remove the mobile phone when it is turned on:

1. 1. Press the mechanical button, the left and right clamping arms open automatically and the mobile phone is removed. The clamping arms remain open.
   2. Pull the mobile phone directly. After removing the mobile phone, the clamp arm remains closed due to the elastic force.

How to remove the phone in a power outage situation : After the car is turned off, pull out the mobile phone directly, and the clamp arm remains closed due to the elastic force.
